Belt conveyor is a category of continuous conveying machinery. It is a continuous conveying equipment  that takes the conveyor belt as the traction component and support component, uses idler to support and  relies on the friction force between the driving pulley and the conveyor belt to transfer the traction force.

It can handle all kinds of powders, granular and bulk materials in a continuous material flow from the loading  point to the unloading point on a certain transportation line. It not only plays an important role in the internal  transportation of industrial enterprises, but also plays an important role in its external transportation.

Due to low investment , low operating costs , long-distance material handing and other reasons , in some  occasions can replace railway transportation and road transportation , has become an indispensable  transportation equipment in the production of industrial enterprises.

Over the past 20 years, our company design and production of belt conveyor has made rapid progress in development,  more prominent features are the application of belt conveyor conveying capacity, single machine length, motor power,  starting and braking technology level has been greatly improved.


Our advantages:

- simple structure  - energy conservation and economy

- wide range of conveying materials - long conveying distance

- large delivery capacity - high production efficiency

- flexible wiring arrangement - highly adaptable

- large lift Angle - flexible receiving and discharging

- high safety and reliability - excellent environmental performance

- simple operation - easy program control


Standard : GB  ISO  EN  DIN  BS  IOCT  ANSI  JIS  AS  VDI  FEM &

Custom - made : BW200 - 400  BW500  BW650  BW800  BW1000  BW1200  BW1400


BW1600  BW1800  BW2000  BW2400  BW2600  BW2800  BW3000mm

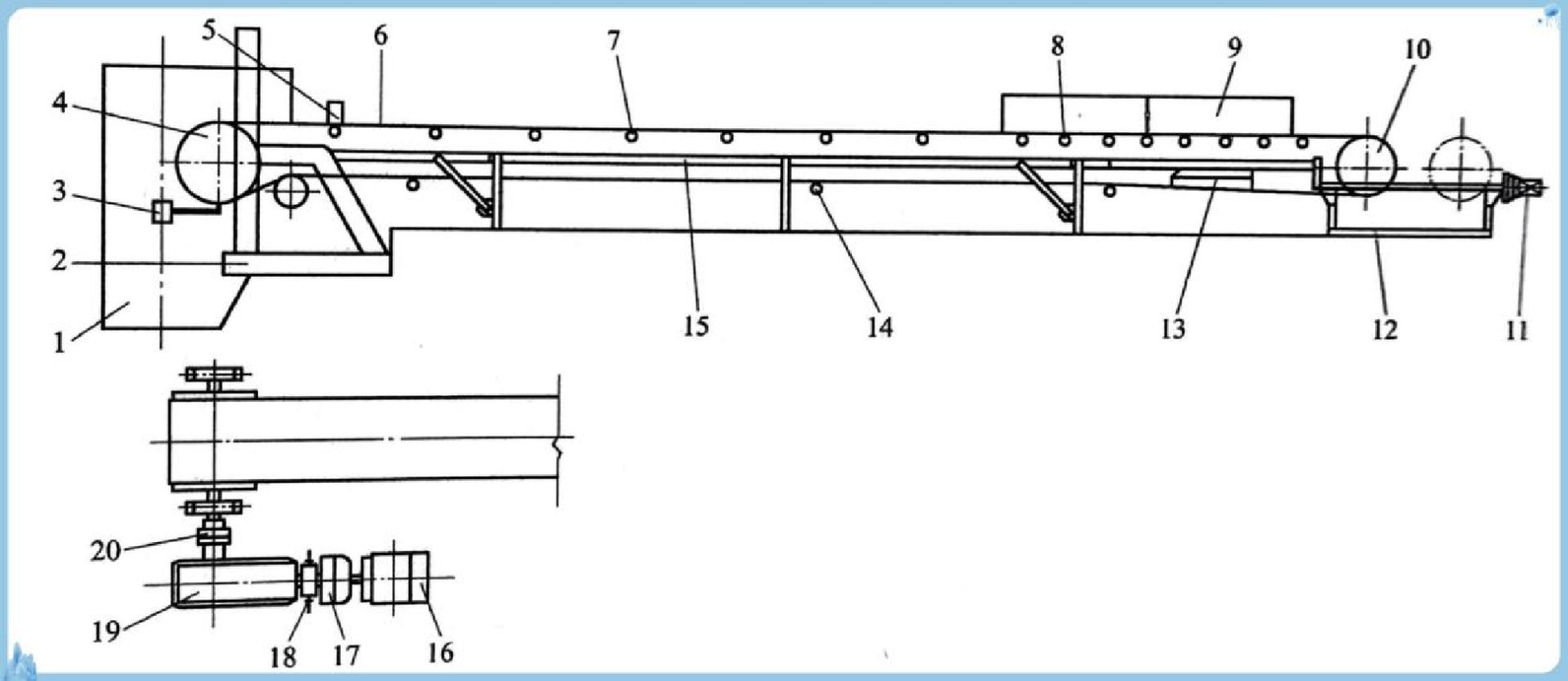

structure  D TII(A)

1. Head Hopper                       2. Head Support       3. Primary Cleaner                 4. Drive Pulley

5. Safety Protection Device    6. Conveyor Belt         7. Carrier Roller                       8. Impact Roller

9. Loading Chute                    10. Bend Pulley         11. Screw Tension Device     12. Tail Support

13. Empty Segment Cleaner   14. Return Roller         15. Middle Support;       16.  Motor

17. Hydraulic Coupler           18. Brake                      19.  Reduction Gear              20. Coupling

Specifications

Long Distance Belt Conveyor Cases

BW

( mm)

BS

(m.s)

Length

(m)

Belt Size

Raw Material

Lift Height

(m)

Capacity

(t/h)

Power

( kw)

Application site

SOP

Time

1400

4 .00

1858

ST-2000

Coal

8

2000

3*500

Inner Mongolia huolinhe coal mine

1986

1200

4 .00

4602

ST-2000

Coal


2220

3*400

Shan Xi - Daliu Tower

1991

1800

5 .50

1482

ST-2500

Ouerburden Material

20

8600

4*630

Inner Mongolia zhungeer opencast   coal mine

1996

1400

5 .85

2556

ST-3150

Coal

12 .7

5616

5*560

Inner Mongolia yuanbaoshan     opencast coal mine

1996

1000

4 .37

15832

ST-2000

Limestone


1260

4*600

Jiaxin-jiangyang

1997

1400

4 .00

7602

ST-2000

Coal


1600

3*800

Shan Xi - j inchengsi he mine

2000

1800

5 .60

8983

ST-3150

Coal


6000

4* 1500

Tianjin Port - Nanjiang

2002

800

2 .50

3980

ST-1600

Iron Ore

-221 .5

432

250

Jiugang xigou mine

2003


BW

( mm)

BS

(m.s)

Length

(m)

Belt Size

Raw Material

Lift Height

(m)

Capacity

(t/h)

Power

( kw)

Application site

SOP

Time

1200

4 .00

3945

ST-2000

Sand Gravel

-20

3000

3*560

Longtan hydropower   station

2003

1200

3 .50

8139

ST-2000

Limestone

0

1600

5*560

Zhumad ian yulong     cement

2004

1000

3 . 15

5100

ST-2500

Limestone

0

650

3*500

Taishan cement

2005

1200

3 . 15

9608

ST-1600

Cement

Clinker


1800

3*800

Wuhu hailuo cement

2005

1400

4 .50

8500

ST-4000

Coal

-325

2700

4*710

Shanxi Golden Sea

2007

1200

4 .00

8298

ST-3150

Sand Gravel

-104

3000

4*900

Xiangjiaba Aggregate   line

2007

2200

4 .70

780

ST-4000

Coal

Dip 12。


3* 1600

Inner Mongolia        buertai coal mine

2008

1200

3 .0-4 .2

5900

ST-2000

Sand Gravel

-200

2800/580

(Two-way)

6*400

Jinping-II Hydropower  Station

2009


BW

( mm)

BS

(m.s)

Length

(m)

Belt Size

Raw Material

Lift Height

(m)

Capacity

(t/h)

Power

( kw)

Application site

SOP Time

1600

4 .00

6000

PVG-

2000S

Coal


4000

6*500

Jinxing Energy

2010

2000

4 .50

3523 .3

ST-4000

Coal


6000

3* 1600

Shanxi da tong mine

2010

1200

3 .80

10574

/

Limestone


1000

5*560

Arong banner mensi cement

2012

1400

4 .50

16589

ST-3150

Limestone


2500

8*750

Huarun Cement

2012

1200

4 .50

2400

ST-4500

Iron Ore

363

1900

4* 1000

Tiangang jiandong iron ore    mine

2014
